The Trader Dimpala DIMR Universal Eclipse Dimmer provides smooth rotary dimming control for LED lighting and a range of other compatible lamp types.
Optimised for dimmable LED lamps and drivers, the DIMR has a low 2W minimum load, making it suitable for modern low-wattage LED lighting installations. It is also compatible with incandescent lamps and 12V halogen (dichroic) lamps and transformers.
The DIMR uses a separately switched two-wire design, meaning a separate light switch is required to turn the lighting ON and OFF. No neutral connection is required at the dimmer, making it suitable for many wall plate retrofit applications.
Rotary control provides straightforward brightness adjustment, while the minimum brightness level can be mechanically adjusted to suit the connected lighting load. Soft-start operation helps prolong lamp and driver life, and an LED indicator provides a convenient indication when the circuit is on.
Designed to fit common Australian wall switch plate apertures, including Trader, HPM and Clipsal, the DIMR provides a versatile dimming solution for new installations and upgrades.

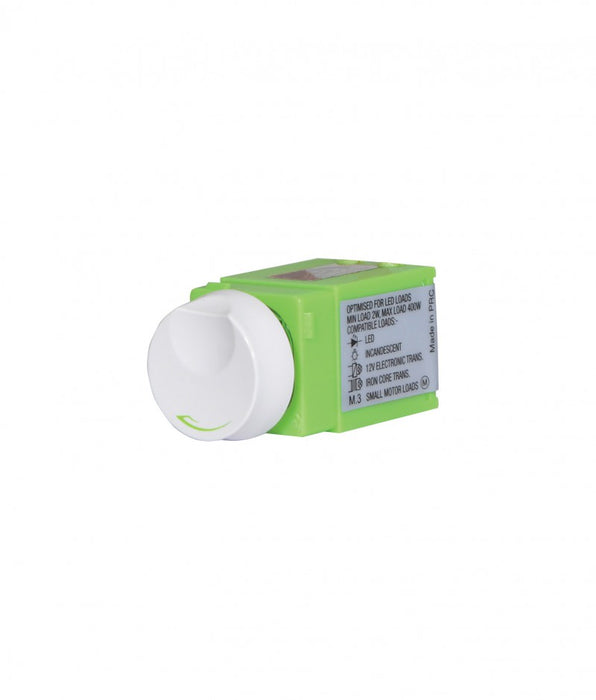

DIMR - Meerkat Dimpala Rotary Dimmer 400w
- Optional dimmer knobs available in a range of styles and finishes
- Compatible with Trader, HPM and Clipsal wall plate apertures
- Rotary dimming control
- Optimised for dimmable LED lamps and drivers
- Low 2W minimum load
- Suitable for incandescent and 12V halogen (dichroic) lamps and transformers
- Separately switched design – requires a separate ON/OFF light switch
- Two-wire installation
- No neutral connection required at the dimmer
- Mechanical minimum brightness adjustment
- Typical minimum brightness of 0%
- Soft-start operation helps prolong lamp and driver life
- Features an ON LED indicator
- Inherent immunity to installation wiring short-circuit faults
- Complies with relevant Australian standards
- 2-year manufacturer warranty
