Legrand Bticino Living Now 3 Module Autoswitched Double Powerpoint

Legrand Bticino Living Now

Legrand Living Now modular powerpoints and switches offer a flexible solution for creating customised electrical layouts with a refined, architectural finish. Designed with an ultra-slim profile and sharp square geometry, the range sits flush to the wall for a clean, modern appearance.

Unlike complete units, modular products allow you to build your configuration to suit specific functional and design requirements. This system is available across selected Living Now products.

Modular System Overview.

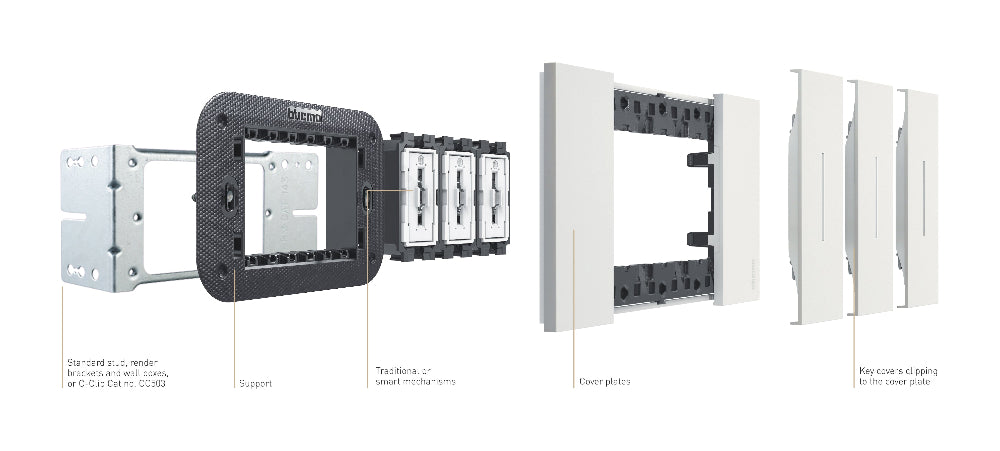

Living Now modular products are assembled using a combination of support frames, modules and cover plates. This allows for tailored configurations across switches, powerpoints, USB charging and data or AV applications.

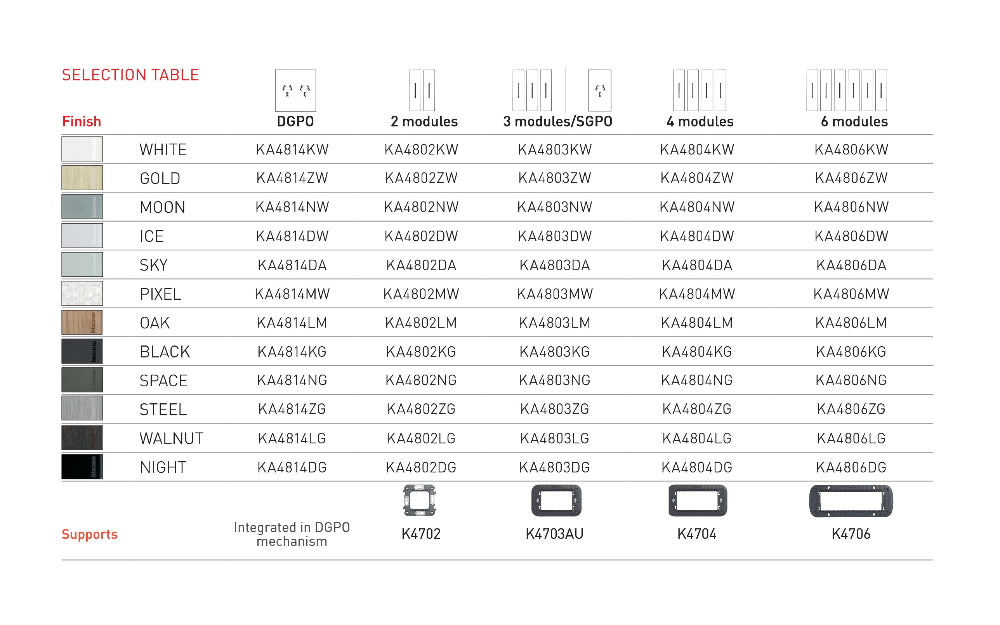

Cover plate finishes include White, Gold, Moon, Ice, Sky, Pixel, Oak, Black, Space, Steel, Walnut and Night allowing for tailored combinations to suit both subtle and statement interiors.

How to Configure Living Now (Modular Products)

1. Choose a Wall Box or Mounting Bracket
Select a compatible wall box or mounting bracket suited to your installation type. Find them here.

2. Select the Frame Size
Choose the support frame based on the number of modules required (e.g. 2, 3, 4 or 6 module). Find them here

3. Choose the Module
Select the required function such as switches, sockets, USB charging, data or AV modules. Find them here

Living Now modules provide the functional component of the system, allowing you to customise each position with switches, powerpoints, USB, data, AV or smart control options. Modules are installed into the support frame, which secures and aligns them within the installation, and are completed with module covers selected separately to match the overall finish. Find them here.

Next Steps

4. Select the Cover Plate:
Choose your preferred finish to suit the space. Find them here

5. Add Module Covers:
Complete the assembly with matching module covers designed for the selected module. Find them here

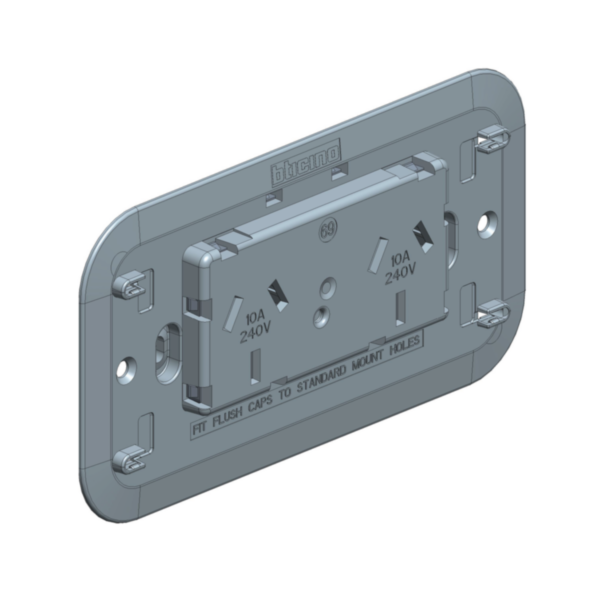

LVNM777 - Legrand Bticino Living Now 3 Module Autoswitched Double Powerpoint

Auto-switched double powerpoint module designed for Living Now modular systems.

Unlike traditional powerpoints, this configuration does not include external on/off switches. Power is automatically controlled internally, delivering a cleaner, more minimal aesthetic while maintaining everyday functionality.

• 3 module double powerpoint
• 10a rated
• Auto-switched operation
• Designed for Living Now modular system
• Fits Living Now support frames
• Requires matching module cover (sold separately)


KW69/KG69 Module cover for this module can be found here

Datasheet

Click Here For Living Now Brochure

If you are unsure what to order, then we are happy to help. Please call us during business hours.
