The Pixie Smart Home System simplifies your life by putting complete control of your lighting and power at your fingertips. Use the intuitive app to create schedules, adjust dimming, and customize scenes to suit your lifestyle. Compatible with voice assistants, Pixie integrates seamlessly with your smart home. Whether you’re at home or away, you can control your devices remotely, ensuring convenience and energy efficiency. Perfect for new builds or upgrades, the Pixie Smart Home System brings innovative functionality and modern convenience to your home.

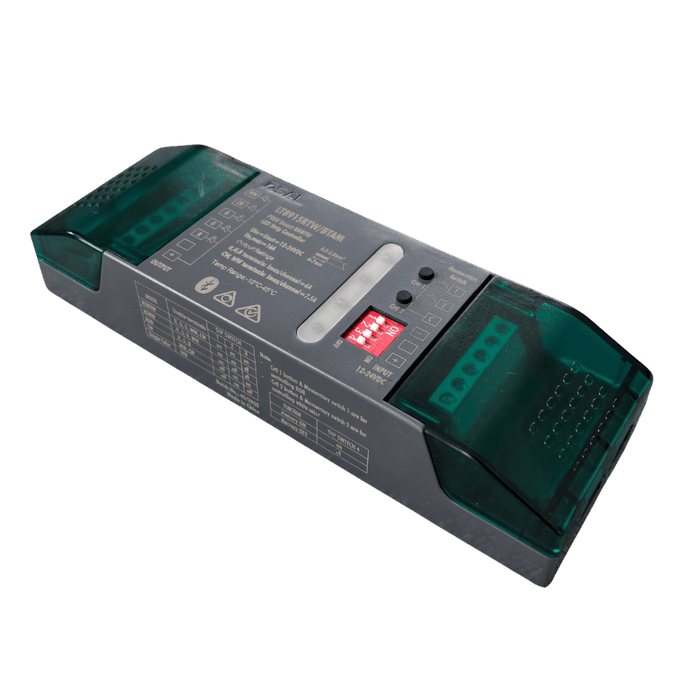

The PIXIE Universal LED Strip Controller is a Gen3 all-in-one controller designed for smart dimming and colour control of compatible 12V and 24V constant-voltage LED strip. One controller supports multiple LED strip configurations including single colour, tunable white/CCT, RGB, RGBW and RGBTW/RGBCCT, allowing the required strip type to be selected during installation using the onboard DIP switches.
Once configured, the controller provides on/off control and smooth dimming from 100% down to 1%, together with colour temperature adjustment and RGB colour control where supported by the connected LED strip. Two optional bell-press inputs allow conventional momentary mechanisms to provide wall control without needing the app, while onboard control buttons and an LED indicator assist with testing and commissioning. An optional memory function can also restore the previous lighting state following a power interruption.

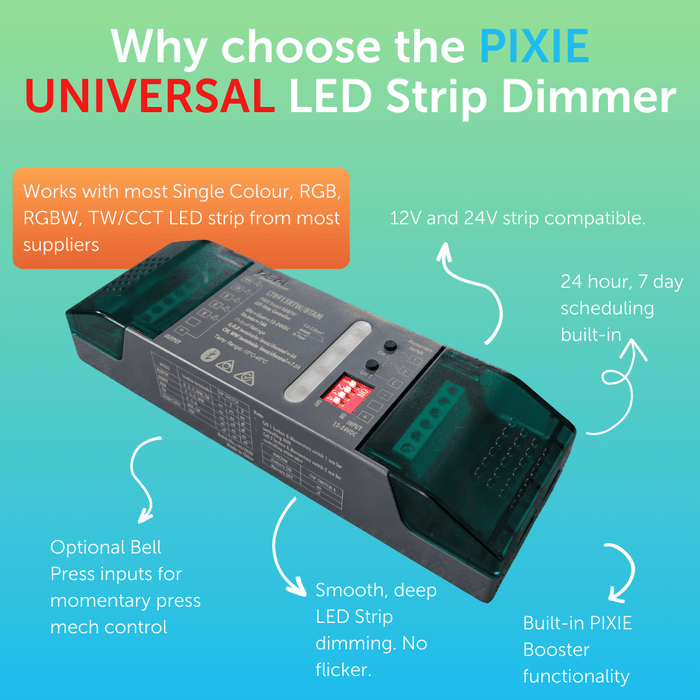

- Universal Controller for 12V & 24V Constant Voltage LED Strip

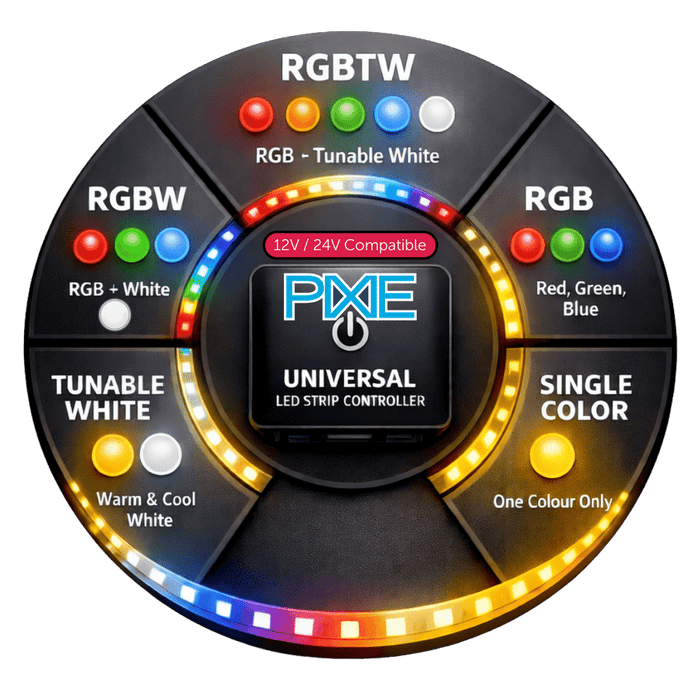

- Supports Single Colour, Tunable White / CCT, RGB, RGBW & RGBTW / RGBCCT LED Strip
- Simple DIP Switch Selection to Match the Connected LED Strip Type
- On / Off, Dimming, CCT Tuning & Colour Changing Functions
- Smooth Deep Dimming from 100% to 1%
- Works with PIXIE & PIXIE PLUS Apps
- Bluetooth® Mesh Connectivity
- 2 x Optional Bell Press / Momentary Inputs for Wall Control
- In-Built Control Buttons & LED Indicator for Testing and Commissioning
- Optional Memory Function to Restore Previous Status After Power Interruption
- Power Input - 12–24V DC, Matching Connected LED Strip Voltage
- Maximum Input Current - 16A
- R/G/B Outputs - Maximum 6A per Channel
- CW / WW Outputs - Maximum 7.5A per Channel
- Dimensions - L 160mm x W 52mm x H 30mm
- IP Rating - IP20
- Operating Temperature - -10°C to 45°C
- Operating Humidity - 10% to 85% RH, Non-Condensing
- Suitable for Compatible LED Strip from Multiple Manufacturers
Important Compatibility Information:
The controller requires a suitable 12V or 24V DC constant-voltage power supply matched to the voltage and load of the connected LED strip. PIXIE's engineering documentation specifies a non-dimmable constant-voltage driver upstream, as the Universal LED Strip Controller performs the dimming itself. Strip voltage, configuration and current requirements must remain within the controller's specified limits.
